明架型材扩充网系统
LAY IN EXTRUSION EXTENDED WIRE SYSTEM

产品说明 PRODUCT DESCRIPTION

明架型材扩充网系统具有开放、通透的效果，是大型建筑吊顶的理想选择之一。系统可选用明架型材、框包网、网包框多种悬挂方式，配合金属板面经拉伸构成的网眼天花形成通透式的效果，给人一种明暗交错的视觉。

Lay In extrusion expanded wire system has the effect of opening and permeable, also it is one of the ideal solutions of the large building ceilings.
Lay In Extrusion, External Frame and Interior Frame are available, form the permeable effect by expanded and provide the vision of light and shade staggered.

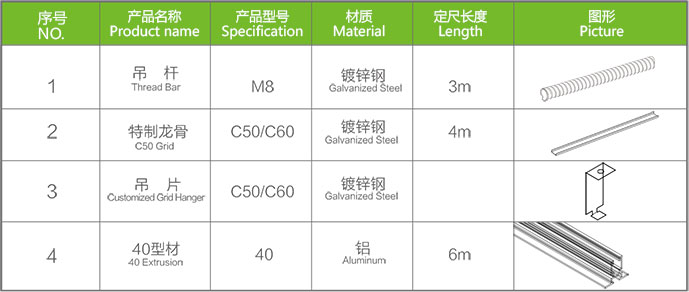

型材铝网系列选用附件表 LAY IN ALUMINUM WIRE SUSPENSION SYSTEM

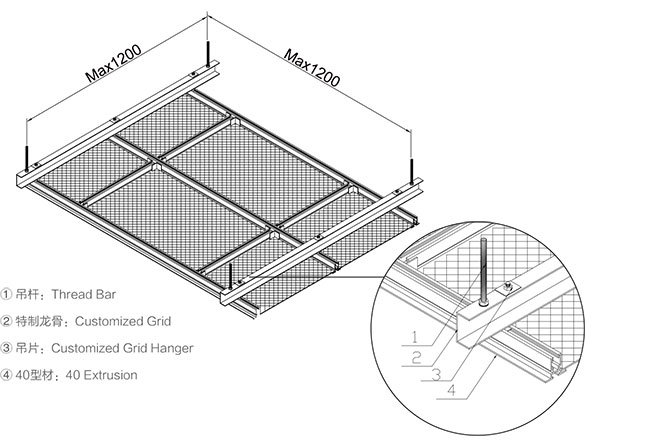

安装结构示意图 INSTALLATION AND ASSEMBLY DETAIL

框包网扩充网系统
EXTERNAL FRAME EXPANDED WIRE SYSTEM

产品说明 PRODUCT DESCRIPTION

框包网扩充网系统具有开放、通透的效果，是大型建筑吊顶的理想选择之一。系统可选用明架型材、框包网、网包框多种悬挂方式，配合金属板面经拉伸构成的网眼天花形成通透式的效果，给人一种明暗交错的视觉。

PRODUCT DESCRIPTION

●External frame expanded wire system has the effect of opening and permeable, it is one of the ideal solutions of the large building ceilings.

●Lay In Extrusion, External Frame and Interior Frame are available, form the permeable effect by expanded and provide the vision of light and shade staggered.

框包铝网系列 EXTERNAL FRAME ALUMINUM WIRE SYSTEM

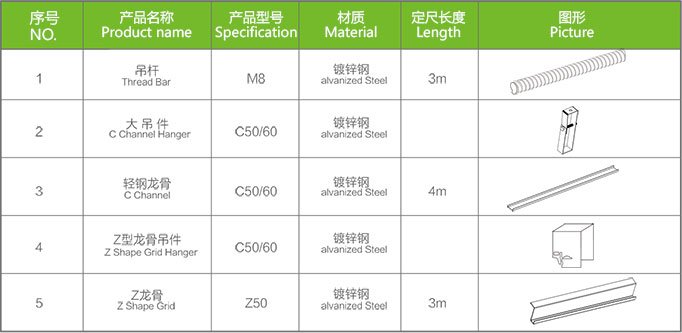

框包铝网系列选用附件表 EXTERNAL FRAME ALUMINUM WIRE SUSPENSION SYSTEM

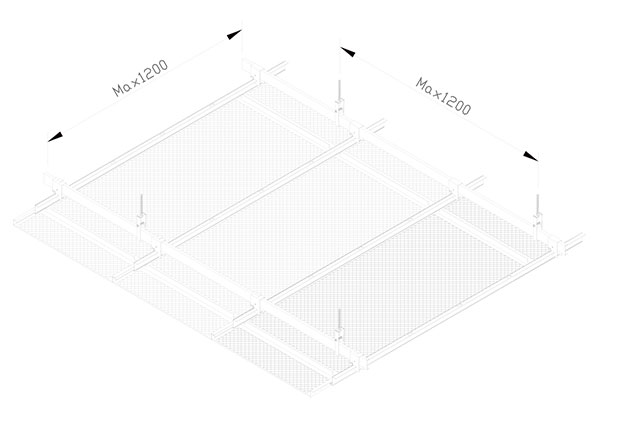

安装结构示意图 INSTALLATION AND ASSEMBLY DETAIL

网包框扩充网系统
INTERIOR FRAME EXPANDED WIRE SYSTEM

产品说明 PRODUCT DESCRIPTION

网包框扩充网系统具有开放、通透的效果，是大型建筑吊顶的理想选择之一。系统可选用明架型材、框包网、网包框多种悬挂方式，配合金属板面经拉伸构成的网眼天花形成通透式的效果，给人一种明暗交错的视觉。

PRODUCT DESCRIPTION

Interior frame expanded wire system has the effect of opening and permeable, it is one of the ideal solutions of the large building ceilings.
Lay In Extrusion, External Frame and Interior Frame are available, form the permeable effect by expanded and provide the vision of light and shade staggered.

铝（钢）网包框系列
ALUMINUM (STEEL) INTERIOR FRAME WIRE SYSTEM

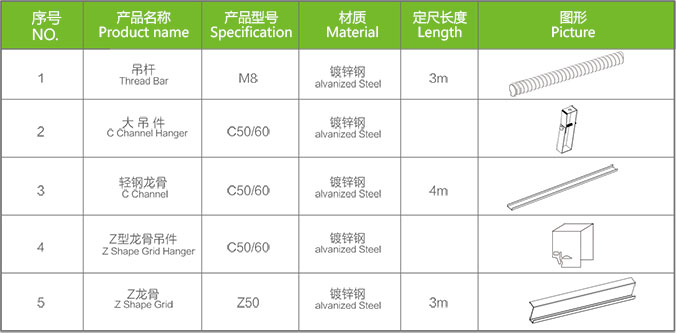

铝（钢）网包框系列系列选用附件表
ALUMINUM (STEEL) INTERIOR FRAME WIRE SUSPENSION SYSTEM

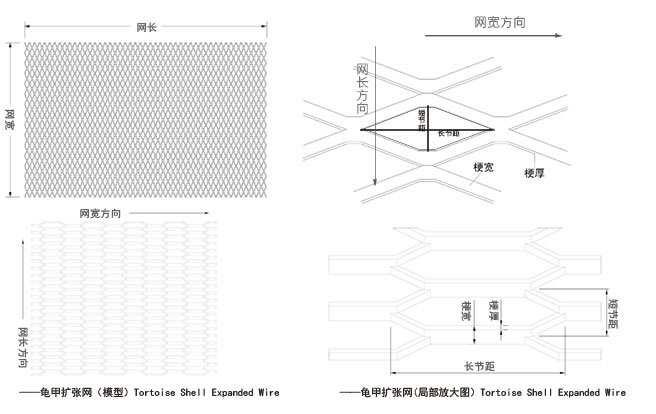

节点示意图 INSTALLATION DETAIL
